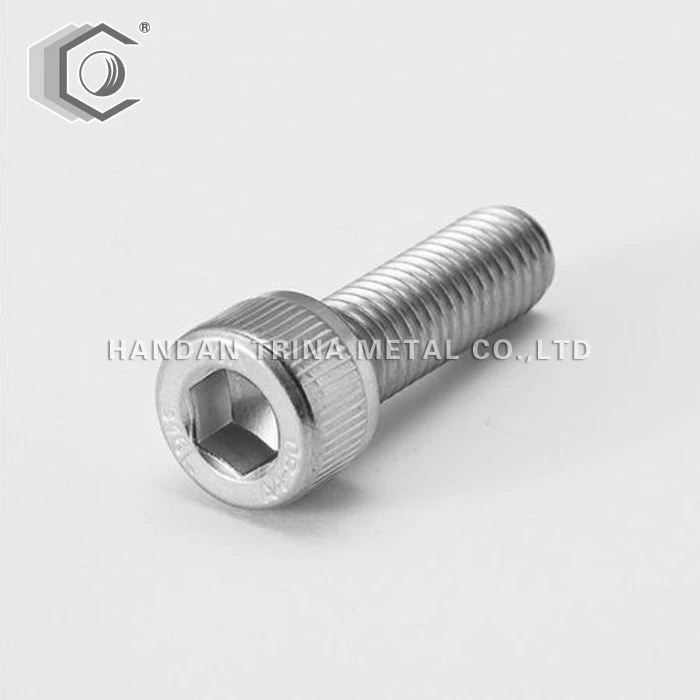

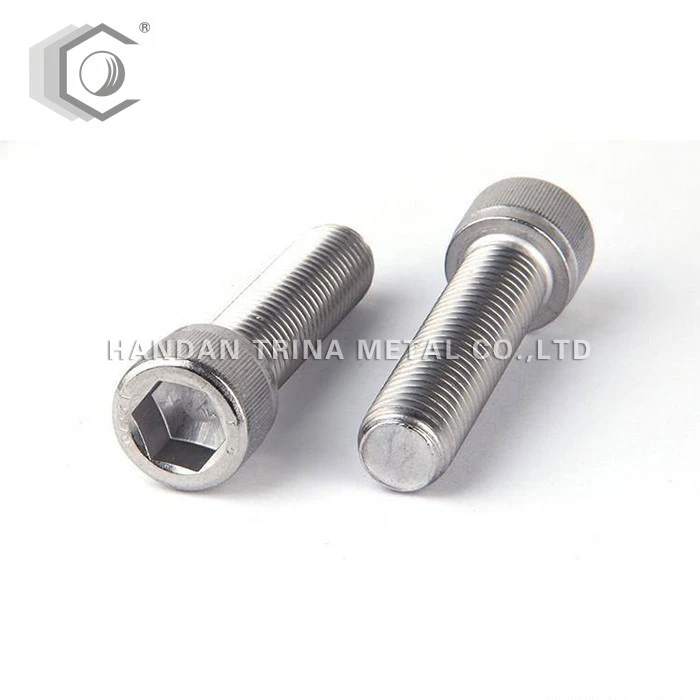

Size:M1.4-M100

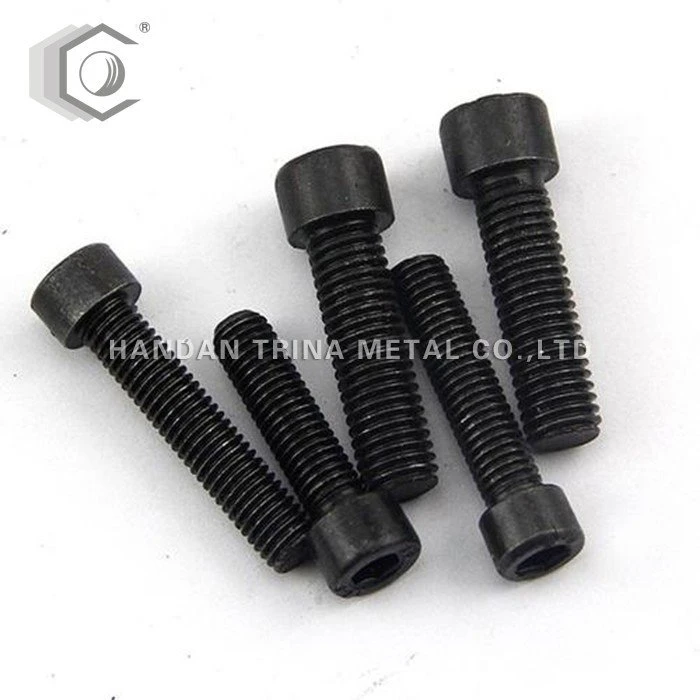

Surface:ZP/BLACK

Grade:4.8/ 8.8/ 10.9/ 12.9

Material:STAINLESS STEEL, STEEL

d	M1.4	M1.6	M2	M2.5	M3	M4	M5	M6	M8	M10	M12	(M14)	M16	(M18)
p	0.3	0.35	0.4	0.45	0.5	0.7	0.8	1	1.25	1.5	1.75	2	2	2.5
	-	-	-	-	-	-	-	-	1	1.25	1.25	1.5	1.5	1.5
	-	-	-	-	-	-	-	-	-	1	1.5	-	-	2
b	14	15	16	17	18	20	22	24	28	32	36	40	44	48
dk	2.6	3	3.8	4.5	5.5	7	8.5	10	13	16	18	21	24	27
	2.74	3.14	3.98	4.68	5.68	6.78	8.28	9.78	12.73	15.73	17.73	15.7	17.7	20.2
	2.46	2.86	3.62	4.32	5.32	6.78	8.28	9.78	12.73	15.73	17.73	20.67	23.67	26.6
da	1.8	2	2.6	3.1	3.6	4.7	5.7	6.8	9.2	11.2	13.7	15.7	17.7	20.2
ds	1.4	1.6	2	2.5	3	4	5	6	8	10	12	14	16	18
ds	1.26	1.46	1.86	2.36	2.86	3.82	4.82	5.82	7.78	9.78	11.73	13.73	15.73	17.7
e	1.5	1.73	1.73	2.3	2.87	3.44	4.58	5.72	6.86	9.15	11.43	13.72	16	16
k	1.4	1.6	2	2.5	3	4	5	6	8	10	12	14	16	18
k	1.26	1.46	1.86	2.36	2.86	3.82	4.82	5.7	7.64	9.64	11.57	13.57	15.57	17.5
s	1.3	1.5	1.5	2	2.5	3	4	5	6	8	10	12	14	14
	1.32	1.52	1.52	2.02	2.52	3.02	4.02	5.02	6.02	8.025	10.025	12.032	14.032	14.03
	1.36	1.56	1.56	2.06	2.58	3.08	4.095	5.14	6.14	8.175	10.175	12.212	14.212	14.21
t	0.6	0.7	1	1.1	1.3	2	2.5	3	4	5	6	7	8	9
w	0.5	0.55	0.55	0.85	1.15	1.4	1.9	2.3	3	4	4.8	5.8	6.8	7.8

d	(M22)	M24	(M27)	M30	(M33)	M36	M42	M48	M56	M64	M72	M80	M90	M100
p	2.5	3	3	3.5	3.5	4	4.5	5	6.5	6	6	6	6	6
	1.5	2	2	2	2	3	3	3	4	4	4	4	4	4
	2	-	-	-	-	-	-	-	-	-	-	-	-	-
b	56	60	66	72	78	84	96	108	124	140	156	172	192	212
dk	33	36	40	45	50	54	63	72	84	96	108	120	135	150
	33.39	36.39	40.39	45.39	50.39	54.46	63.46	72.46	84.54	96.54	108.54	120.54	135.63	150.63
	32.61	35.61	39.61	44.61	49.61	53.54	62.54	71.54	83.46	95.46	107.46	119.46	134.37	149.37
da	24.4	26.4	30.4	33.4	36.4	39.4	45.5	52.6	63	71	79	87	97	107
ds	22	24	27	30	33	36	42	48	56	64	72	80	90	100
ds	21.67	23.67	26.67	29.67	32.61	35.61	41.61	47.61	55.54	63.54	71.54	79.54	89.46	99.46
e	19.44	21.73	21.73	25.15	27.43	30.85	36.57	41.13	46.83	52.53	62.81	74.21	85.61	97.04
k	22	24	27	30	33	36	42	48	56	64	72	80	90	100
k	21.48	23.48	26.48	29.48	32.38	35.38	41.38	47.38	56.26	63.26	71.26	79.26	89.13	99.13
s	17	19	19	22	24	27	32	36	41	46	55	65	75	85
	17.05	19.065	19.065	22.065	24.065	27.065	32.08	36.08	41.08	46.08	55.1	65.1	75.1	85.12
	17.23	19.275	19.275	22.275	24.275	27.275	32.33	36.33	41.33	46.33	55.4	65.4	75.4	85.47
t	11	12	13.5	15.5	18	19	24	28	34	38	43	48	54	60
w	9.4	10.4	11.9	13.1	13.5	15.3	16.3	17.5	19	22	25	27	32	34

Basic parameters:

Hardness:

Hexagon socket bolts are classified according to the hardness of the screw wire, tensile force, yield strength, etc., which is the grade of the hexagon socket bolt and what grade is the hexagon socket bolt. Different product materials require different grades of hexagon socket bolts to correspond to them.

Hexagon socket bolts have the following grades:

Hexagon socket bolts are divided into ordinary and high-strength according to their grade strength. Ordinary hexagon socket bolts refer to grade 4.8, and high-strength hexagon socket bolts refer to grades above 8.8, including grades 10.9 and 12.9.

Crafting process:

1. Drill holes according to the diameter of the opposite side of the inner hexagon to the requirements.

2. Upsetting the inner hexagon with a cold heading machine.

3. A single piece can be punched out with a hexagonal punch.
