Size: M30-M530
Surface: ZP/HDG
Material: Stainless steel
|
d |
30 |
38 |
46 |
52 |
64 |
82 |
94 |
120 |
148 |
|
d1 |
25~26.9 |
30~33.7 |
38~42.4 |
44.5~48.3 |
57~60.3 |
76.1 |
88.9 |
108~114.3 |
133~139.7 |
|
d1 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
|
3/4 |
1 |
1 1/4 |
1 1/2 |
2'' |
2 1/2 |
3 |
4 |
- |
|
|
b |
40 |
40 |
50 |
50 |
50 |
50 |
50 |
60 |
60 |
|
ds |
10 |
10 |
10 |
10 |
12 |
12 |
12 |
16 |
16 |
|
d3 |
M10 |
M10 |
M10 |
M10 |
M12 |
M12 |
M12 |
M16 |
M16 |
|
L |
70 |
76 |
86 |
92 |
109 |
125 |
138 |
- |
- |
|
L1 |
28 |
31 |
37 |
40 |
49 |
57 |
66 |
171 |
191 |
|
n |
40 |
48 |
56 |
62 |
76 |
94 |
106 |
136 |
164 |
|
kg |
9.4 |
10.5 |
12 |
12.9 |
22.2 |
25.9 |
28.8 |
64 |
72.7 |
|
6.8 |
7.7 |
9 |
9.7 |
16.8 |
19.8 |
22.4 |
- |
- |
|
d |
176 |
202 |
228 |
282 |
332 |
378 |
428 |
530 |
|
d1 |
159~168.3 |
(191)~193.7 |
216~219.1 |
267~273 |
318~323.9 |
355.6~368 |
406.4~419 |
508~521 |
|
d1 |
150 |
(175) |
200 |
250 |
300 |
350 |
400 |
500 |
|
- |
- |
- |
- |
- |
- |
- |
- |
|
|
b |
60 |
60 |
70 |
70 |
70 |
70 |
70 |
70 |
|
ds |
16 |
16 |
20 |
20 |
20 |
24 |
24 |
24 |
|
d3 |
M16 |
M16 |
M20 |
M20 |
M20 |
M24 |
M24 |
M24 |
|
L |
- |
- |
- |
- |
- |
- |
- |
- |
|
L1 |
217 |
249 |
283 |
334 |
385 |
435 |
487 |
589 |
|
n |
192 |
218 |
248 |
302 |
352 |
402 |
452 |
554 |
|
kg |
83.4 |
95.8 |
169.8 |
202.8 |
235 |
382 |
429 |
522 |
|
- |
- |
- |
- |
- |
- |
- |
- |

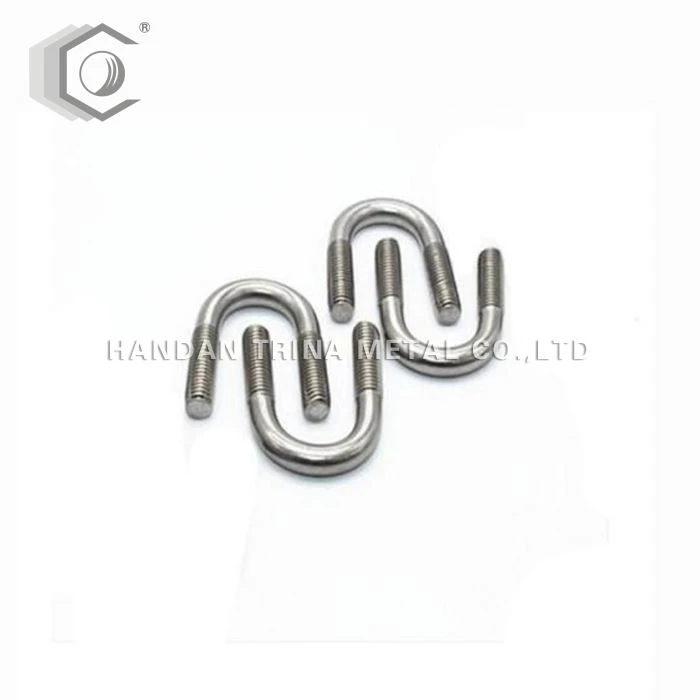

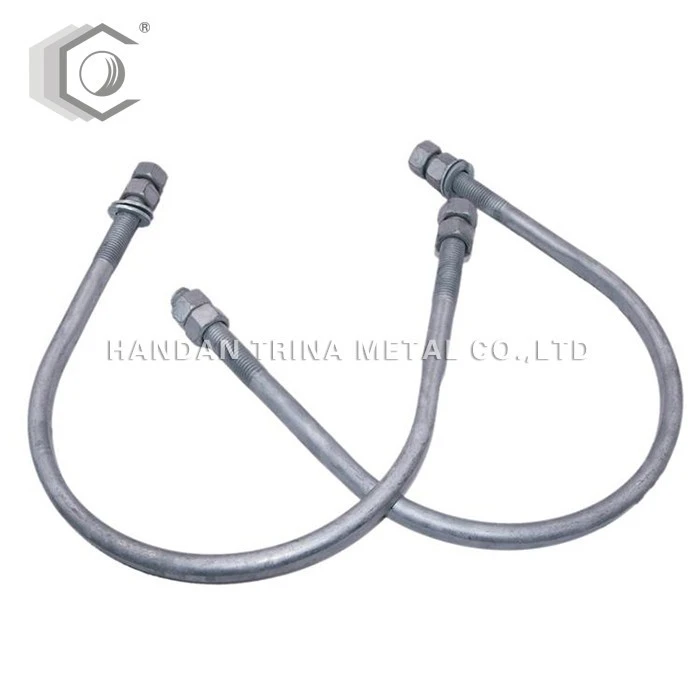

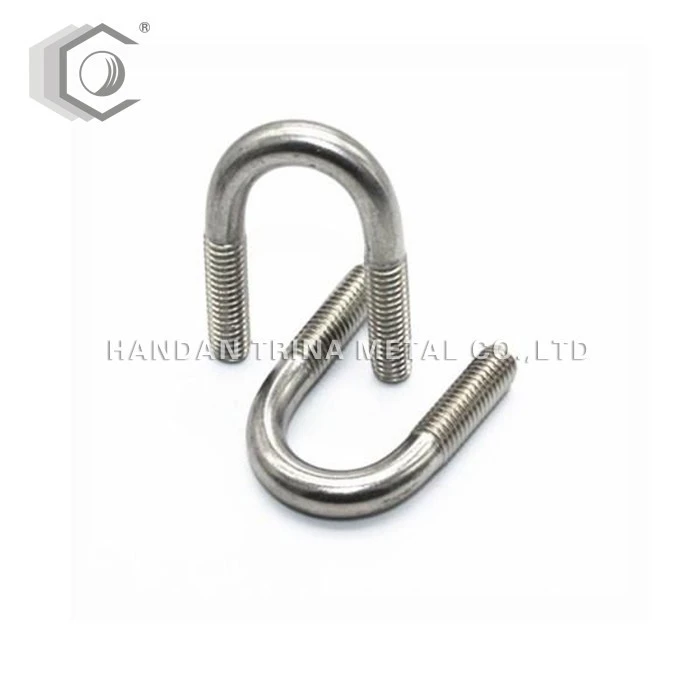

There are threads at both ends that can be combined with a nut, mainly used to fix tubular objects such as water pipes or sheet objects such as leaf springs of automobiles.
Application:
Wide range of uses, main uses: construction and installation, mechanical fittings connection, vehicles, ships, bridges, tunnels, railways, etc.
Production Equipment:
1) CNC Machining Center;
2) CNC Lathe;
3) CNC Milling Machine;
4) Precision Cutting Machine
Measuring Instruments and Equipment:
1) Micrometer
2) Smooth plug gauge
3) Thread gauge
4) Image measuring instrument
5) Coordinate Measuring Machine
6) Roughness tester
7) Routine inspection of calipers.
Preferred Industries:
1) Communication Equipments
2) Medical Equipments
3) Photo electricity Equipments
4) Auto Industry
5) Mechanical Equipments
6) Other customized Parts
