Size:custom
Surface:ZP,HDG
Material:Stainless Steel, Steel
d | 3/8 | 3/8 | 3/8 | 3/8 | 3/8 | 3/8 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 |
PP | 16 | 16 | 16 | 16 | 16 | 16 | 13 | 13 | 13 | 13 | 13 |
L | 6 | 8 | 10 | 12 | 14 | 16 | 6 | 8 | 10 | 12 | 14 |
6.125 | 8.125 | 10.125 | 12.125 | 14.125 | 16.125 | 6.125 | 8.125 | 10.125 | 12.125 | 14.125 | |
5.875 | 7.875 | 9.875 | 11.875 | 13.875 | 15.875 | 5.875 | 7.875 | 9.875 | 11.875 | 13.875 | |
n | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
1.125 | 1.125 | 1.125 | 1.125 | 1.125 | 1.125 | 1.125 | 1.125 | 1.125 | 1.125 | 1.125 | |
0.875 | 0.875 | 0.875 | 0.875 | 0.875 | 0.875 | 0.875 | 0.875 | 0.875 | 0.875 | 0.875 | |
b | 1.625 | 1.625 | 1.625 | 1.625 | 1.625 | 1.625 | 2.125 | 2.125 | 2.125 | 2.125 | 2.125 |
1.375 | 1.375 | 1.375 | 1.375 | 1.375 | 1.375 | 1.875 | 1.875 | 1.875 | 1.875 | 1.875 | |
d | 1/2 | 1/2 | 5/8 | 5/8 | 5/8 | 5/8 | 5/8 | 5/8 | 5/8 | 3/4 | 3/4 |
PP | 13 | 13 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 10 | 10 |
L | 16 | 18 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 8 | 10 |
16.125 | 18.125 | 6.125 | 8.125 | 10.125 | 12.125 | 14.125 | 16.125 | 18.125 | 8.188 | 10.188 | |
15.875 | 17.875 | 5.875 | 7.875 | 9.875 | 11.875 | 13.875 | 15.875 | 17.875 | 7.812 | 9.812 | |
n | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 3 | 3 |
1.125 | 1.125 | 2.125 | 2.125 | 2.125 | 2.125 | 2.125 | 2.125 | 2.125 | 3.188 | 3.188 | |
0.875 | 0.875 | 1.875 | 1.875 | 1.875 | 1.875 | 1.875 | 1.875 | 1.875 | 2.812 | 2.812 | |
b | 2.125 | 2.125 | 4.188 | 4.188 | 4.188 | 4.188 | 4.188 | 4.188 | 4.188 | 4.25 | 4.25 |
1.875 | 1.875 | 3.812 | 3.812 | 3.812 | 3.812 | 3.812 | 3.812 | 3.812 | 3.75 | 3.75 | |
d | 3/4 | 3/4 | 3/4 | 3/4 | 3/4 | 1 | 1 | 1 | 1 | 1 | 1 |
PP | 10 | 10 | 10 | 10 | 10 | 8 | 8 | 8 | 8 | 8 | 8 |
L | 12 | 14 | 16 | 18 | 24 | 10 | 12 | 14 | 16 | 18 | 24 |
12.188 | 14.188 | 16.188 | 18.188 | 24.25 | 10.188 | 12.188 | 14.188 | 16.188 | 18.188 | 24.25 | |
11.812 | 13.812 | 15.812 | 17.812 | 23.75 | 9.812 | 11.812 | 13.812 | 15.812 | 17.812 | 23.75 | |
n | 3 | 3 | 3 | 3 | 3 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 |
3.188 | 3.188 | 3.188 | 3.188 | 3.188 | 3.688 | 3.688 | 3.688 | 3.688 | 3.688 | 3.688 | |
2.812 | 2.812 | 2.812 | 2.812 | 2.812 | 3.312 | 3.312 | 3.312 | 3.312 | 3.312 | 3.312 | |
b | 4.25 | 4.25 | 4.25 | 4.25 | 4.25 | 6.25 | 6.25 | 6.25 | 6.25 | 6.25 | 6.25 |
3.75 | 3.75 | 3.75 | 3.75 | 3.75 | 5.75 | 5.75 | 5.75 | 5.75 | 5.75 | 5.75 |

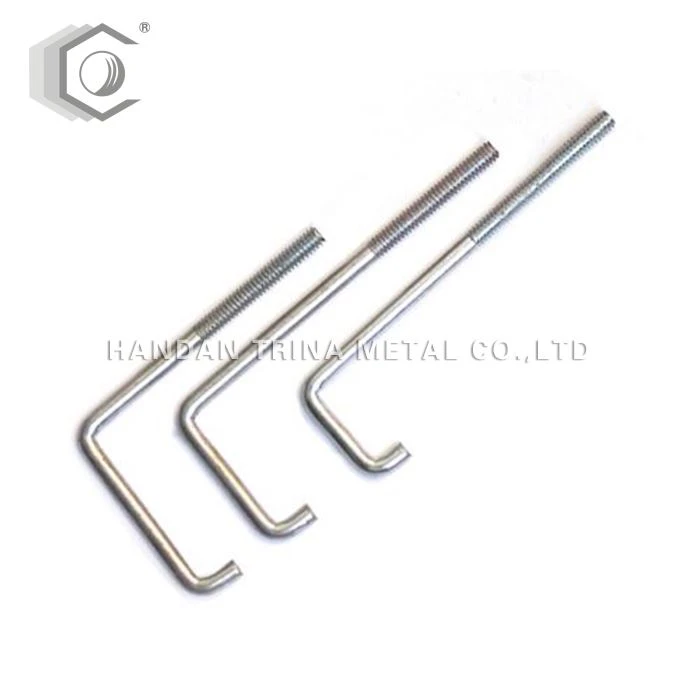

L-shaped anchor bolts are commonly used foundation members for anchoring steel columns and other anchors. They are named because they are "L"-shaped in shape. Also known as: straight hook anchor bolt, 7-shaped anchor bolt, anchor bolt, anchor bolt, anchor screw, anchor wire, etc.
It is specially designed to be buried in the concrete foundation and used as the base for fixing various steel structure support columns and machinery equipment. L-shaped anchor bolt is a kind of anchor bolt that is often used.
Installation method:
1. One-time burying method: When pouring concrete, bury the anchor bolts. When high towers are controlled by overturning, the anchor bolts should be embedded once.
2. Reserved hole method: the equipment is in place, the holes are cleaned, the anchor bolts are put into the holes, and the equipment is positioned and corrected, and then poured with non-shrinking fine-stone concrete one level higher than the original foundation for compaction. . The distance from the center of the anchor bolt to the edge of the foundation should not be less than 4d (d is the diameter of the anchor bolt), and should not be less than 150mm (d≤20, should not be less than 100mm), and not less than half of the width of the anchor plate Add 50mm. When the above requirements cannot be met, appropriate measures should be taken to strengthen it. The diameter of the anchor bolts used for the structure should not be less than 20mm. When subjected to earthquakes, double nuts should be used for fixing, or other effective measures to prevent loosening should be adopted, but the anchoring length of the anchor bolts should be 5d longer than the non-seismic anchoring length.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are the manufacturer so our products are the lowest price.
Q: Do you provide samples ?
A: Yes, we could offer samples for free.
