Size:M1.6-M10
Surface：ZP
Material:Stainless Steel
Measurement system:Metric
Delivery method:by sea, by air or by express service
d | M1.6 | M2 | M2.5 | M3 | (M3.5) | M4 | M5 | M6 | M8 | M10 |
p | 0.35 | 0.4 | 0.45 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1.25 | 1.5 |
a | 0.7 | 0.8 | 0.9 | 1 | 1.2 | 1.4 | 1.6 | 2 | 2.5 | 3 |
b | 15 | 16 | 18 | 19 | 20 | 22 | 25 | 28 | 34 | 40 |
dk | 3 | 3.8 | 4.7 | 5.6 | 6.5 | 7.5 | 9.2 | 11 | 14.5 | 18 |
2.75 | 3.5 | 4.4 | 5.3 | 6.14 | 7.14 | 8.84 | 10.57 | 14.07 | 17.57 | |
k | 0.96 | 1.2 | 1.5 | 1.65 | 1.93 | 2.5 | 2.5 | 3 | 4 | 5 |
x | 0.9 | 1 | 1.1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 | 3.2 | 3.8 |
0 | 1 | 1 | 1 | 2 | 2 | 2 | 3 | 4 | 4 | |
M1 | 1.7 | 2.35 | 2.7 | 2.9 | 3.9 | 4.4 | 4.6 | 6.6 | 8.7 | 9.6 |
M2 | 1.8 | 2.2 | 2.5 | 2.8 | 3.7 | 4 | 4.4 | 6.1 | 8.5 | 9.4 |
Application: Structural Steel; Metal Buliding; Oil&Gas; Tower&Pole; Wind Energy; Mechanical Machine; Automobile: Home Decorating and etc.

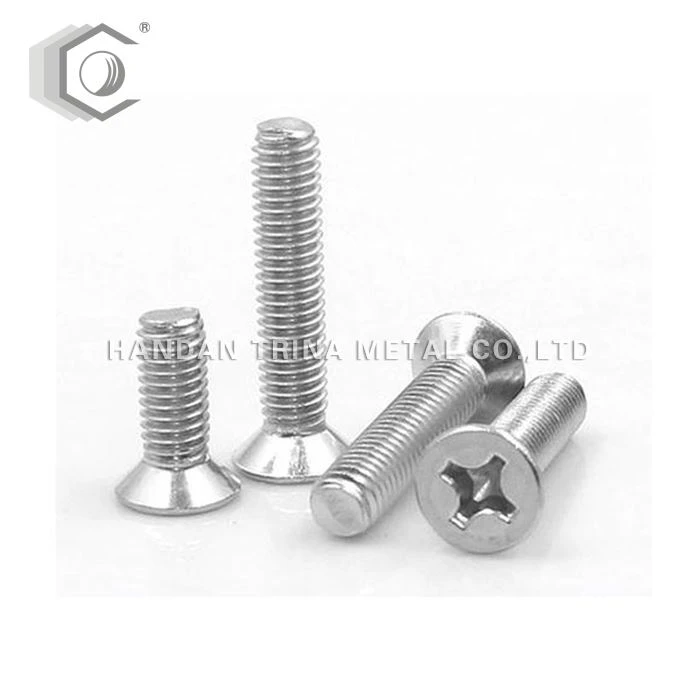

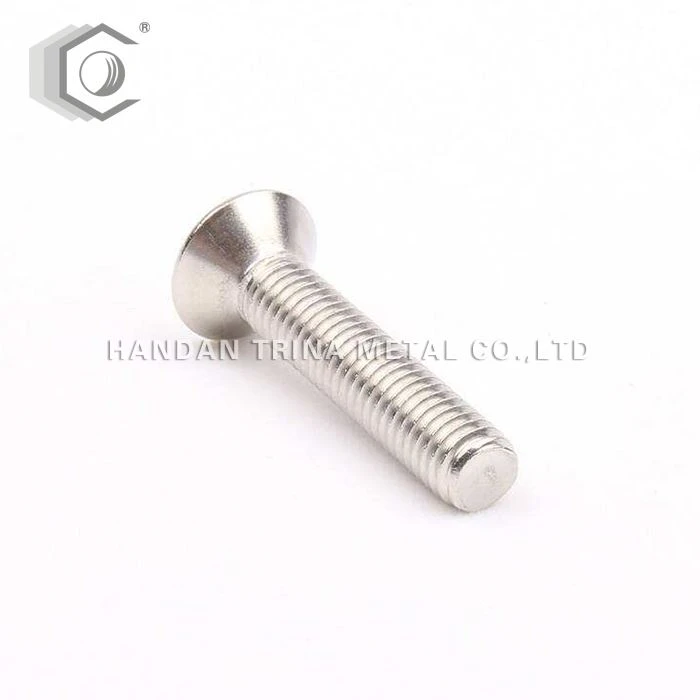

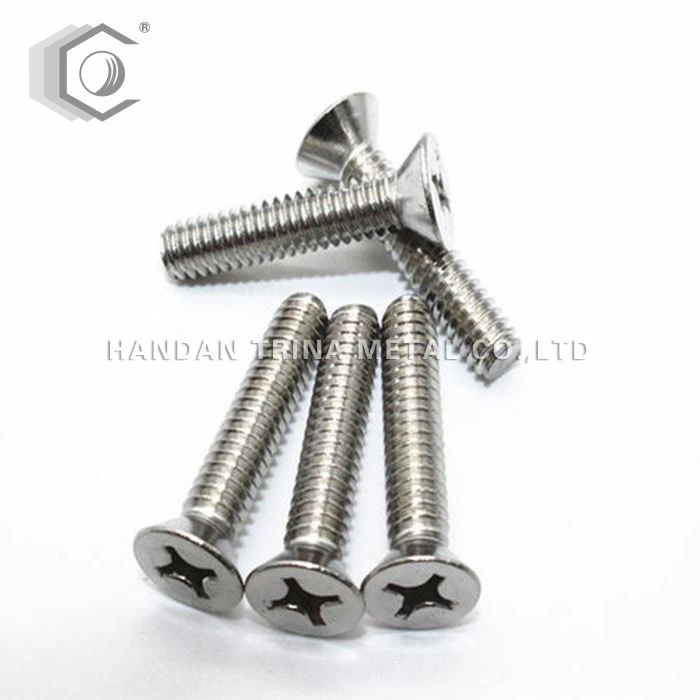

A countersunk screw, also known as a flat machine screw, has a 90-degree cone on its head, which is similar to a common wood screw. The head has a tool-tightening groove, such as a flat, cross, hexagon, etc.
1. Can I order a small list ?
---Of course, you can.
2. What quote do you offer?
---FOB , CIF and others ways according the your needs.
3. How transport?
---Sea Freight, Air Freight and others Express Delivery ways for you.
4. What is the quality of your products guarantee?
---We have passed ISO9001:2008 Quality Management System Certification, CQM Quality Management System Certification and IQNet .
Quality Management System Certification, If the quality doesn't accord the standard, you can exchange the goods for free.
5. Do you have after-sales service?
---Certainly,you can contact us at any time.
