Size:M1.6-M10
d | M1.6 | M2 | M2.5 | M3 | (M3.5) | M4 | M5 | M6 | M8 | M10 |
P | 0.35 | 0.4 | 0.45 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1.25 | 1.5 |
a | 0.7 | 0.8 | 0.9 | 1 | 1.2 | 1.4 | 1.6 | 2 | 2.5 | 3 |
b | 15 | 16 | 18 | 19 | 20 | 22 | 25 | 28 | 34 | 40 |
dk | 3.2 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 16 | 20 |
2.9 | 3.7 | 4.7 | 5.7 | 6.64 | 7.64 | 9.64 | 11.57 | 15.57 | 19.48 | |
k | 1.3 | 1.6 | 2 | 2.4 | 2.7 | 3.1 | 3.8 | 4.6 | 6 | 7.5 |
1.42 | 1.72 | 2.12 | 2.52 | 2.82 | 3.25 | 3.95 | 4.75 | 6.15 | 7.68 | |
1.18 | 1.48 | 1.88 | 2.28 | 2.58 | 2.95 | 3.65 | 4.45 | 5.85 | 7.32 | |
x | 0.9 | 1 | 1.1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 | 3.2 | 3.8 |
M1 | 1.8 | 2.5 | 2.7 | 3.1 | 4.2 | 4.6 | 5.3 | 6.8 | 9 | 10.2 |
M2 | 1.8 | 2.4 | 2.6 | 3 | 4 | 4.3 | 5 | 6.7 | 8.8 | 9.9 |
≈kg | - | - | - | - | - | - | - | - | - | - |

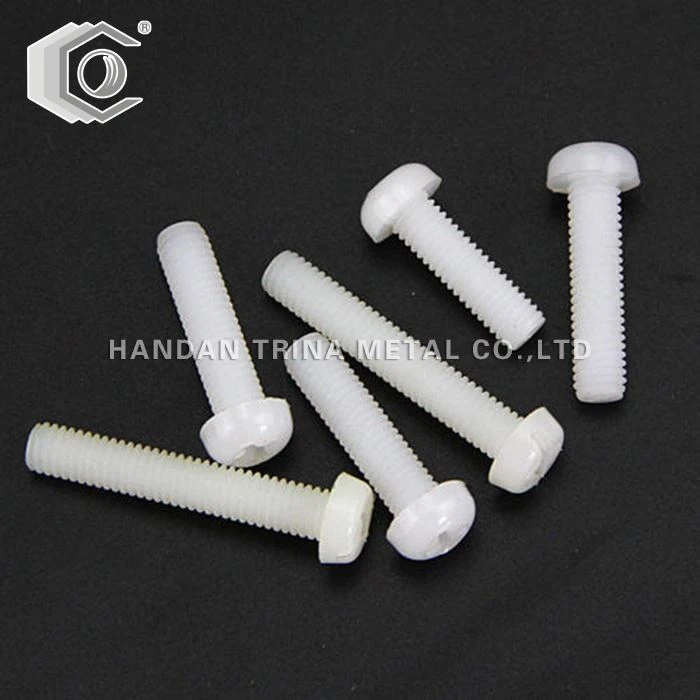

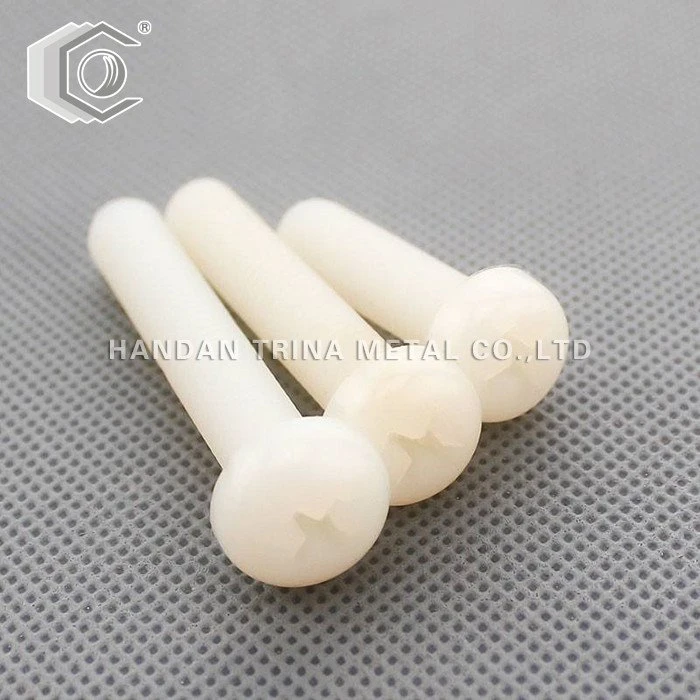

Nylon screws have high-quality properties such as insulation, non-magnetic, corrosion resistance, beauty, and never rust. Modified engineering plastics have the strength and impact resistance comparable to metals. The nylon screws we often say are commonly called RENY screws. After 30% glass fiber, its mechanical properties are far better than ordinary nylon. The materials used in nylon screws are becoming more and more diversified, the performance is continuously improved, and the application fields are becoming wider and wider.
