Size: φ6-φ36

Grade：4.8，8.8

Specifications		φ3.2	φ3.7	φ4.3	φ5.3	φ6.4	φ7.4	φ8.4	φ10.5	φ13	φ15	φ17
M	Corresponding bolt	M3	M3.5	M4	M5	M6	M7	M8	M10	M12	M14	M16
d	Minimum	3.2	3.7	4.3	5.3	6.4	7.4	8.4	10.5	13	15	17
d	Maximum value	3.38	3.88	4.48	5.48	6.62	7.62	8.62	10.77	13.27	15.27	17.27
dс	Maximum value	7	8	9	10	12	14	16	20	24	28	30
dс	Minimum	6.64	7.64	8.64	9.64	11.57	13.57	15.57	19.48	23.48	27.48	29.48
h	nominal	0.5	0.5	0.8	1	1.6	1.6	1.6	2	2.5	2.5	3
	Maximum value	0.55	0.55	0.9	1.11	1.8	1.8	1.8	2.2	2.7	2.7	3.3
	Minimum	0.45	0.45	0.7	0.9	1.4	1.4	1.4	1.8	2.3	2.3	2.7
Weight/mpcs(kg)		0.119	0.155	0.308	0.443	1.02	1.39	1.83	3.57	6.27	8.62	11.3
Specifications		φ19	φ21	φ23	φ25	φ27	φ28	φ29	φ31	φ33	φ34	φ36
M	Corresponding bolt	M18	M20	M22	M24	M26	M27	M28	M30	M32	M33	M35
d	Minimum	19	21	23	25	27	28	29	31	33	34	36
d	Maximum value	19.33	21.33	23.33	25.33	27.33	28.33	29.33	31.39	33.62	34.62	36.62
dс	Maximum value	34	37	39	44	50	50	50	56	60	60	66
dс	Minimum	33.38	36.38	38.38	43.38	49.38	49.38	49.38	55.26	58.8	58.8	64.8
h	nominal	3	3	3	4	4	4	4	4	5	5	5
	Maximum value	3.3	3.3	3.3	4.3	4.3	4.3	4.3	4.3	5.6	5.6	5.6
	Minimum	2.7	2.7	2.7	3.7	3.7	3.7	3.7	3.7	4.4	4.4	4.4
Weight/mpcs(kg)		14.7	17.2	18.3	32.3	43.7	42.3	40.9	53.6	77.4	75.3	94.3

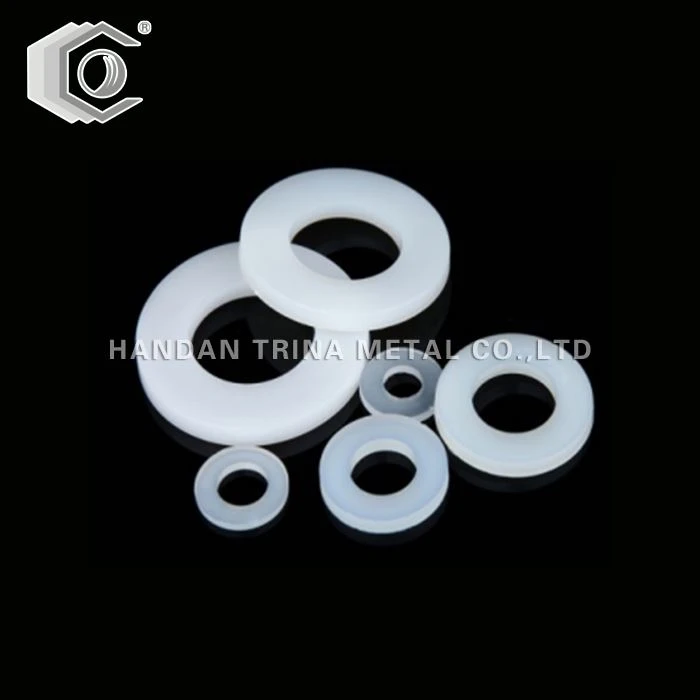

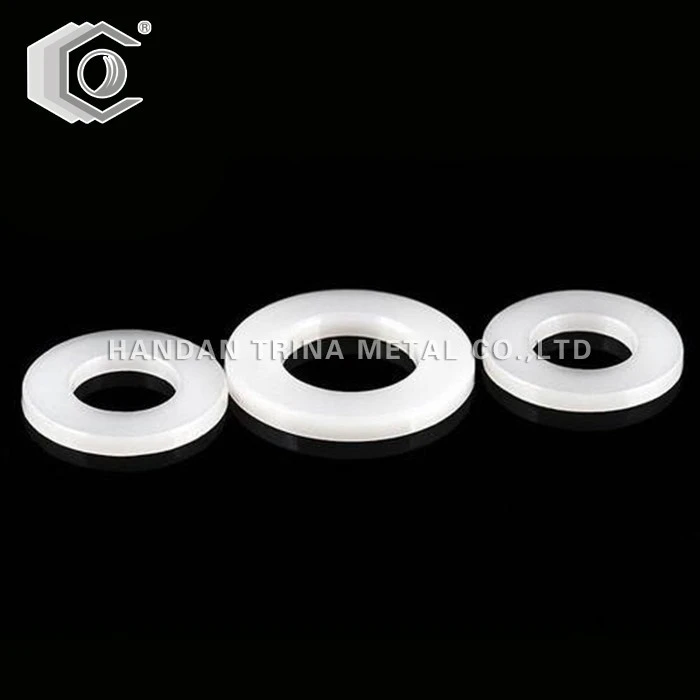

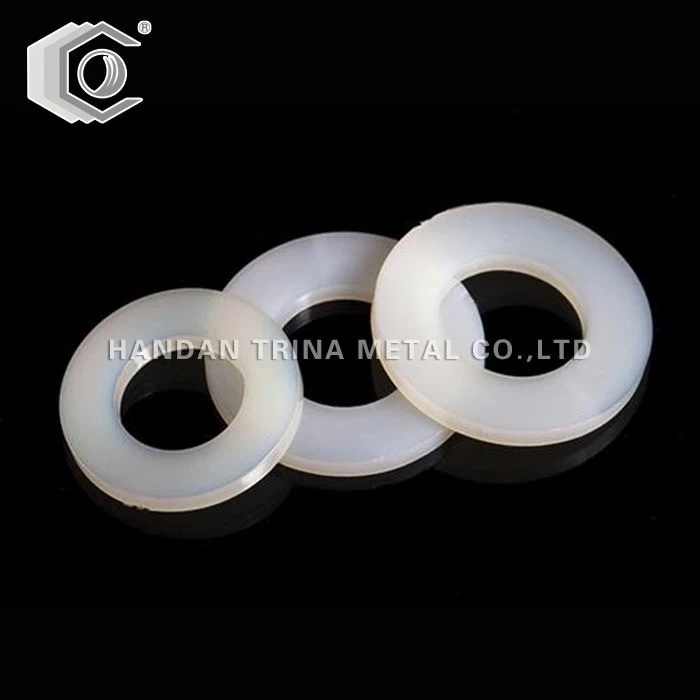

It has excellent insulation properties, non-magnetic, heat insulation, and light weight. The plastic gaskets of individual materials also have high temperature resistance, high strength, and corrosion resistance. Some products have anti-drop function and are widely used in various industrial fields.
