The car repair gecko does not have high requirements for the depth and cleanliness of the concrete cavity, is easy to install, and is inexpensive. Choose an appropriate embedding depth according to the thickness of the solid roof. As the embedding depth increases, the tensile force increases, and this product has a reliable expansion function.Body material: stainless steel, carbon steel and other metal materials.
|

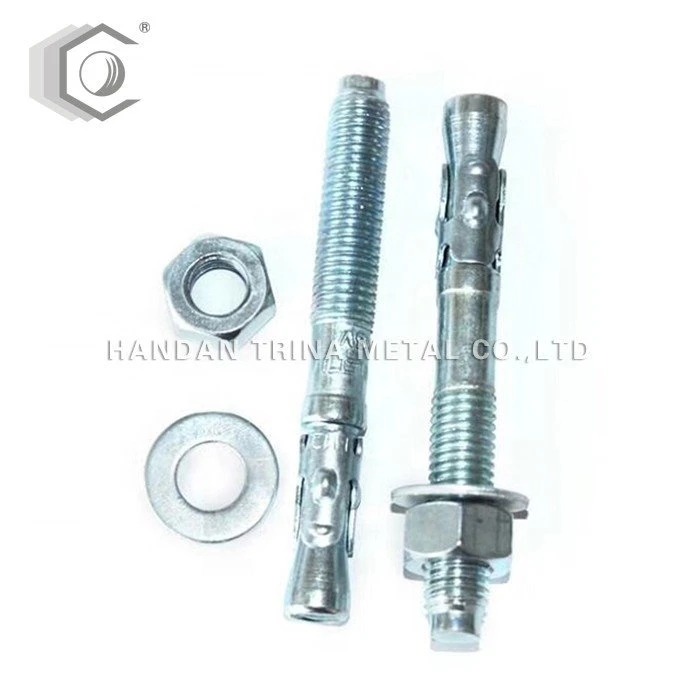

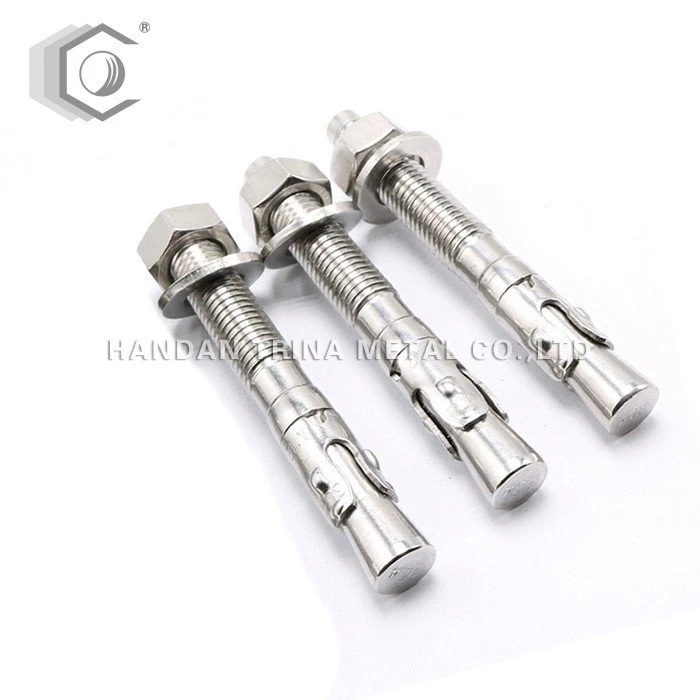

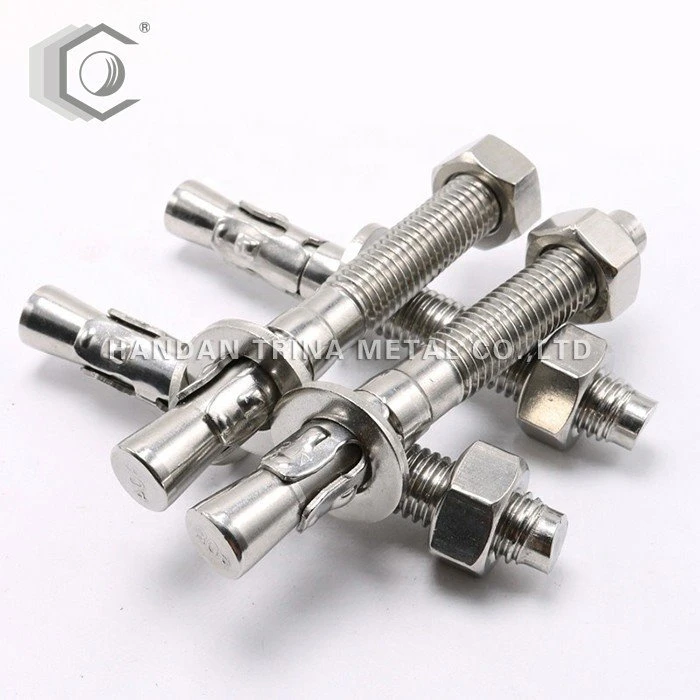

WEDGE ANCHOR ELEVATOR BOLT |
|||
|
SIZE:M6-M24 GRADE:4.8,8.8 |
|||
|
SURFACE:BLUE WHITE ZINC,YELLOW ZINC PLATING |
|||
|
SIZE |
PCS(CARTON) |
WEIGHT/MPCS(KG) |
|
|
6*60 |
1800 |
13 |
|
|
6*80 |
1600 |
16.2 |
|
|
6*100 |
1400 |
19.5 |
|
|
8*60 |
1000 |
25.3 |
|
|
8*80 |
800 |
31 |
|
|
8*100 |
720 |
36.7 |
|
|
8*120 |
640 |
42.4 |
|
|
8*150 |
560 |
51.1 |
|
|
10*60 |
600 |
43.5 |
|
|
10*70 |
560 |
47.9 |
|
|
10*80 |
560 |
52.4 |
|
|
10*100 |
480 |
61.4 |
|
|
10*120 |
400 |
71.4 |
|
|
10*150 |
360 |
85.3 |
|
|
10*200 |
280 |
108.5 |
|
|
12*80 |
360 |
78.8 |
|
|
12*100 |
320 |
92 |
|
|
12*120 |
280 |
105.3 |
|
|
12*150 |
240 |
125.3 |
|
|
12*180 |
200 |
145.8 |
|
|
12*200 |
180 |
159.1 |
|
|
16*80 |
200 |
150.1 |
|
|
16*100 |
160 |
174.9 |
|
|
16*110 |
160 |
187.4 |
|
|
16*120 |
160 |
199.7 |
|
|
16*150 |
120 |
235.6 |
|
|
16*180 |
100 |
272.6 |
|
|
16*200 |
100 |
300.4 |
|
|
16*250 |
80 |
362.9 |
|
|
16*300 |
60 |
435 |
|
|
20*100 |
112 |
292 |
|
|
20*120 |
96 |
332 |
|
|
20*150 |
80 |
392 |
|
|
20*160 |
48 |
411.5 |
|
|
20*180 |
60 |
451 |
|
|
20*200 |
60 |
490 |
|
|
20*250 |
52 |
590 |
|
|
20*300 |
40 |
689 |
|
|
24*100 |
48 |
441.5 |
|
|
24*120 |
48 |
499.5 |
|
|
24*150 |
48 |
586.5 |
|
|
24*180 |
10 |
673.5 |
|
|
24*200 |
40 |
731.5 |
|
|
24*250 |
28 |
871.5 |
|
|
24*300 |
28 |
1011.5 |
|
Product Features:
This product has a longer thread and is easier to install, and is usually used in heavy-duty facilities.
To obtain a reliable, huge fastening force, it is necessary to ensure that the clamp ring fixed on the gecko is fully expanded. In addition, the expansion clamp ring must not fall off the rod or twist in the hole.
The calibrated tensile values are all tested under the condition of cement strength of 260~300kgs/cm2, and the maximum safe load shall not exceed 25% of the calibrated value.
Application field:
Suitable for concrete and dense natural stone, metal structures, metal profiles, bottom plates, supporting plates, brackets, railings, windows, curtain walls, machines, beams, stringers, brackets, etc.
