Introduction：
Handan Trina Metal Co., . is a comprehensive manufacturing enterprise specializing in the research and development, production, sales and service of fasteners. It focuses on the customized production of high-end fasteners that are resistant to high pressure, high and low temperatures, and corrosion. The company takes a full-chain layout as its core advantage, covering raw material procurement, precision processing, personalized customization, centralized procurement, professional packaging, efficient logistics and worry-free after-sales services. It provides customers with one-stop fastener solutions.
Product Description
| Product Name | DIN 6921 FLANGE BOLT |
| Material | Stainless steel, alloy steel |
| Standard | GB/T 16674,GB 5789,DIN 6921,ASME B18.2.3.4M,304/316 |
| Grade | 4.8,8.8,10.9,12.9 |
| Diameter | M6,M8,M10,M12,M14,M14,M20,M24 |
Dimension table
| Size | M6 | M8 | M10 | M12 | M14 | M16 | M20 |
| P | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 |
| DC | 14.2 | 18 | 22.3 | 26.6 | 30.5 | 35 | 43 |
| S | 10 | 13 | 15 | 16 | 18 | 21 | 27 |
| S | 9.78 | 12.73 | 14.73 | 15.73 | 17.73 | 20.67 | 26.67 |
| K | 6.6 | 8.1 | 9.2 | 11.5 | 12.8 | 14.4 | 17.1 |
Product Details

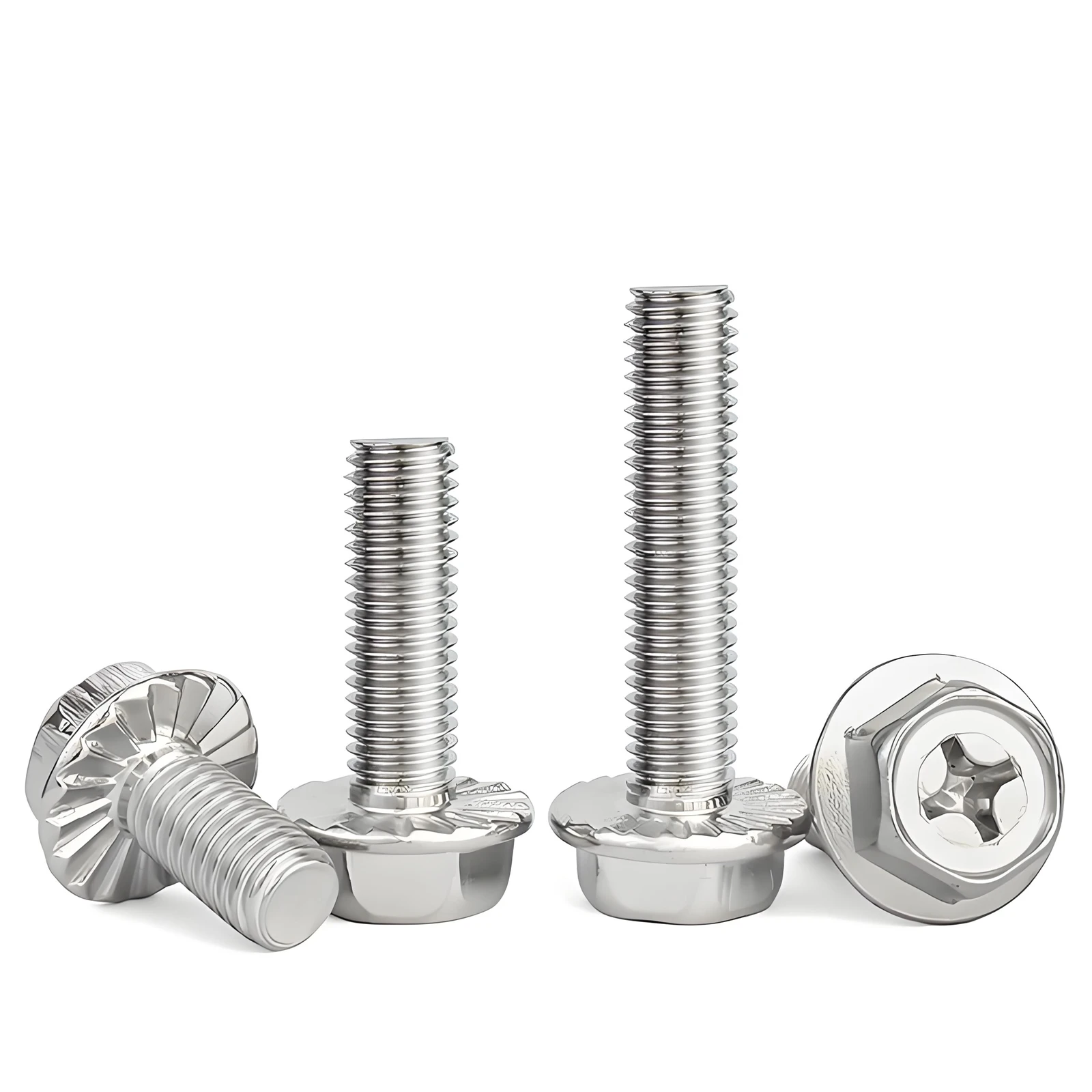

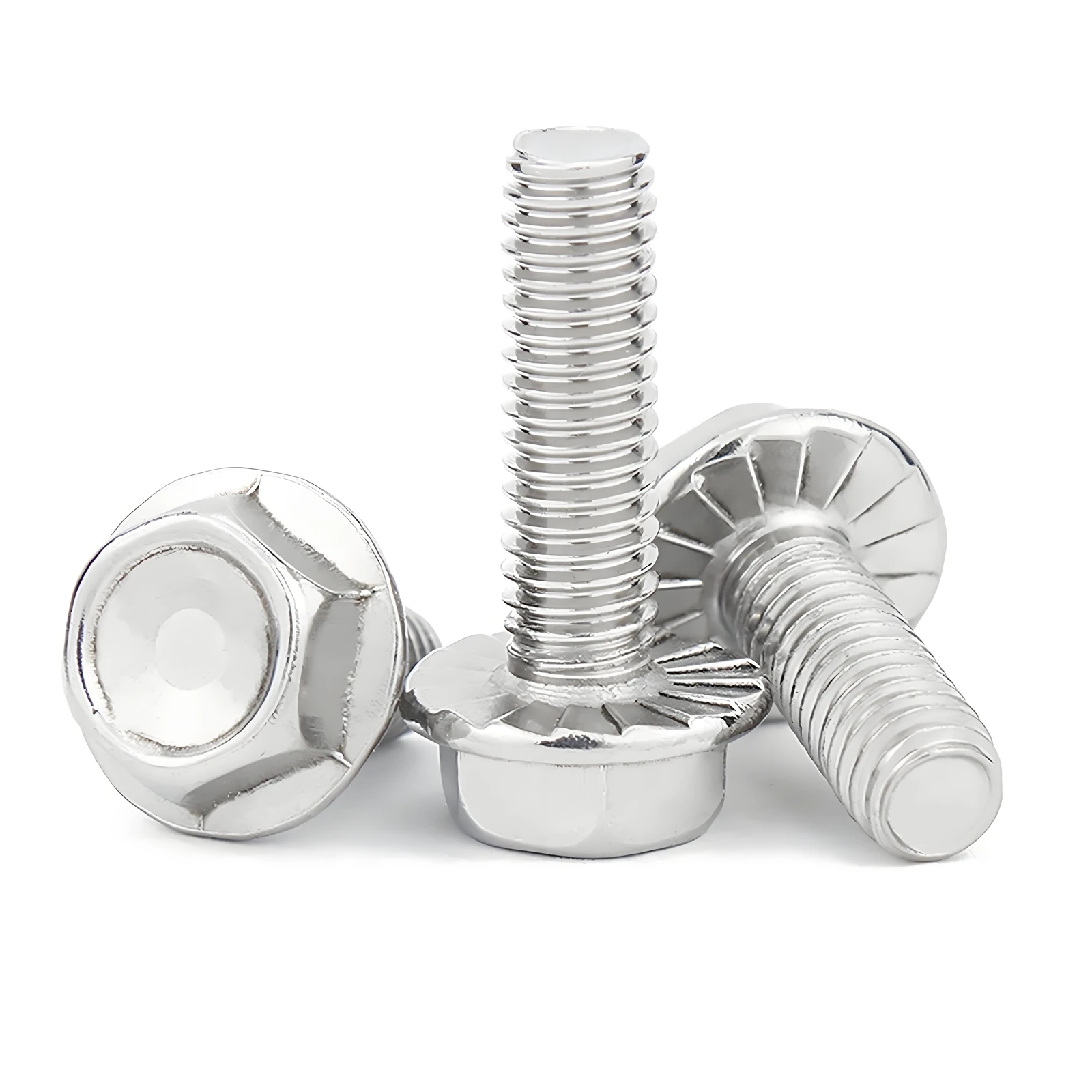

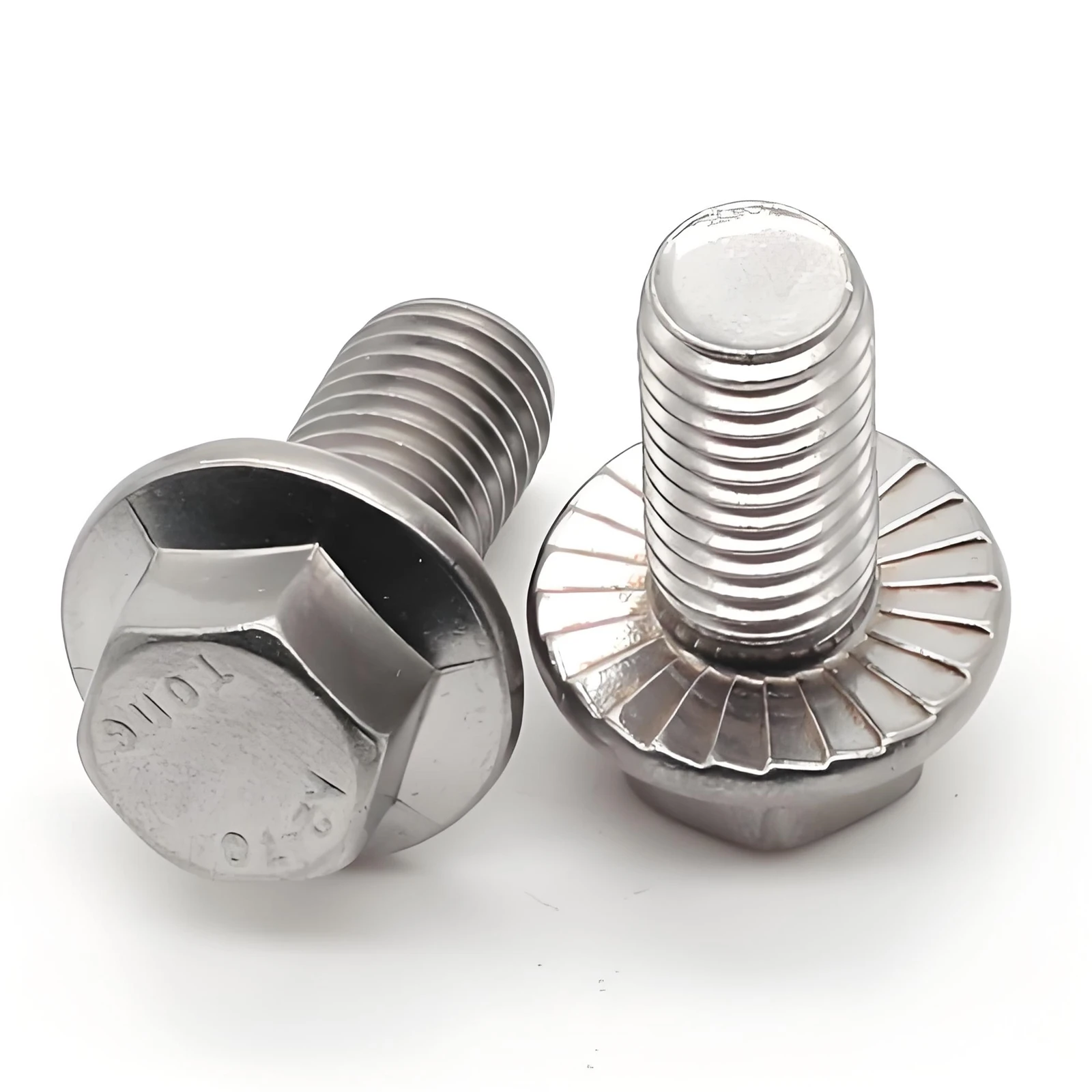

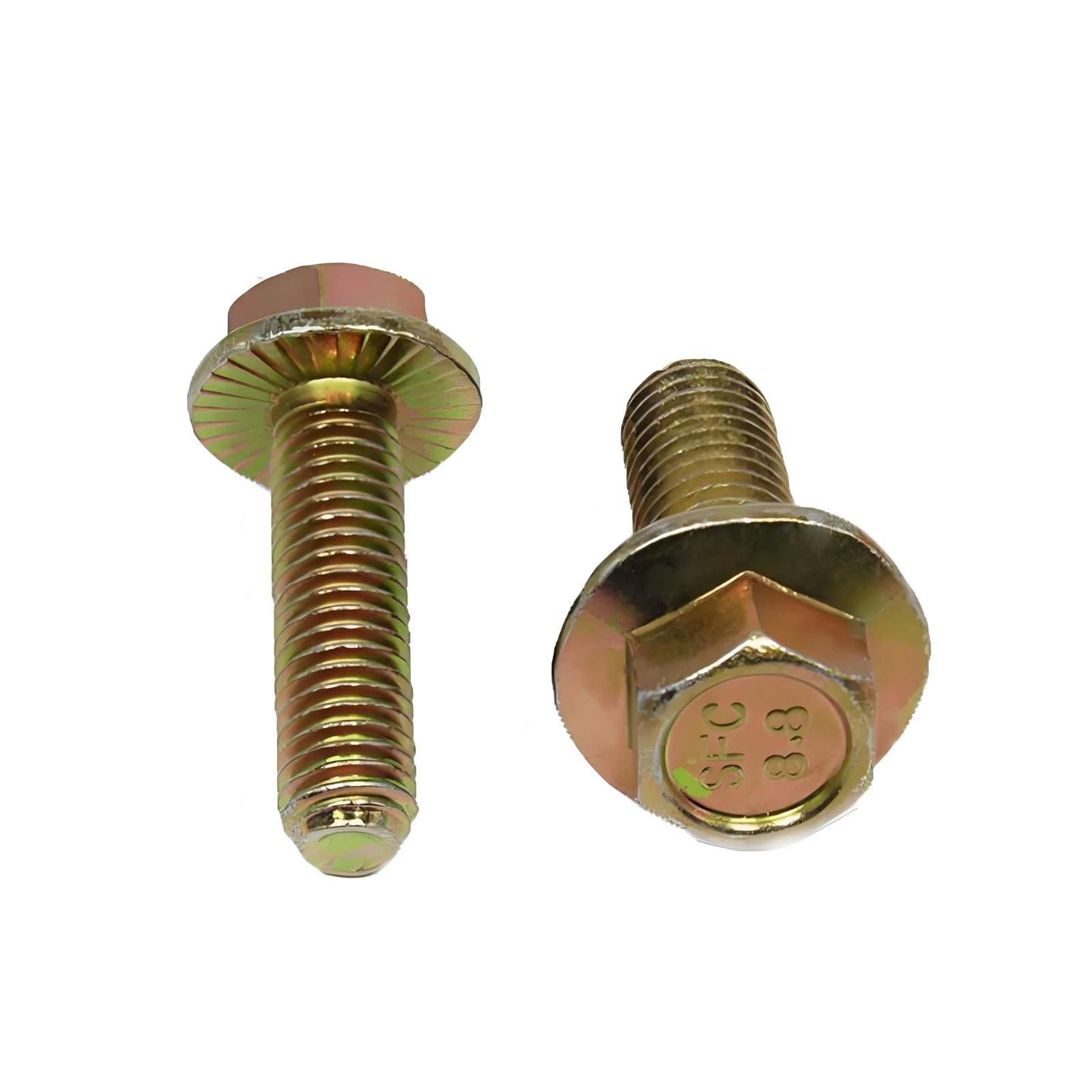

Product image
Flange bolts are mechanical fasteners composed of hexagonal heads, flange plates and threaded rods. They need to be used in conjunction with nuts and are widely applied in fields such as automobiles, Bridges and heavy machinery.
Structure and composition
The core structure of a flange bolt consists of three parts: hexagonal head (providing the force-bearing surface for tightening with a wrench), flange plate (integrated gasket structure, increasing the contact area to distribute pressure), and threaded rod (a cylinder with external threads). Its integrated design avoids the trouble of adding additional gaskets to ordinary bolts and enhances the anti-loosening performance.
Quality inspection
features
Youdaoplaceholder0 High-strength connection : The flange design makes the ratio of the support area to the stress area larger, which can withstand higher preload force and is suitable for scenarios with frequent vibration.
Youdaoplaceholder0 anti-loosening performance : Some models of flange plates have toothed patterns or are combined with rubber sealing rings (such as silicone rubber skirts) to form a double-layer anti-loosening barrier.
Youdaoplaceholder0 Corrosion resistance : Surface treatments include galvanization, dacromet coating, etc. Some are made of alloy steel materials (such as SCM435 chromium-molybdenum steel) to enhance durability.
application fields
Youdaoplaceholder0 automotive industry : connection of engines, steering systems and body panels.
Youdaoplaceholder0 Heavy machinery : reamed hole connections for equipment such as excavators and cranes.
Youdaoplaceholder0 infrastructure projects : high-strength fastening of highway/railway Bridges and building steel structures.
Why choose TRINA
Relying on advanced production equipment, a complete detection system and the enterprise technology center, we strictly control every process from raw materials to finished products, achieving online monitoring throughout the process to ensure excellent and stable product quality. With competitiveness in supply chain support, logistics efficiency, cost optimization and product diversity, we continuously provide high-reliability fasteners for industries such as energy, chemicals, transportation and machinery, always adhering to the concept of "quality first, customer first", and striving to become a global leading fastener manufacturing service provider.
