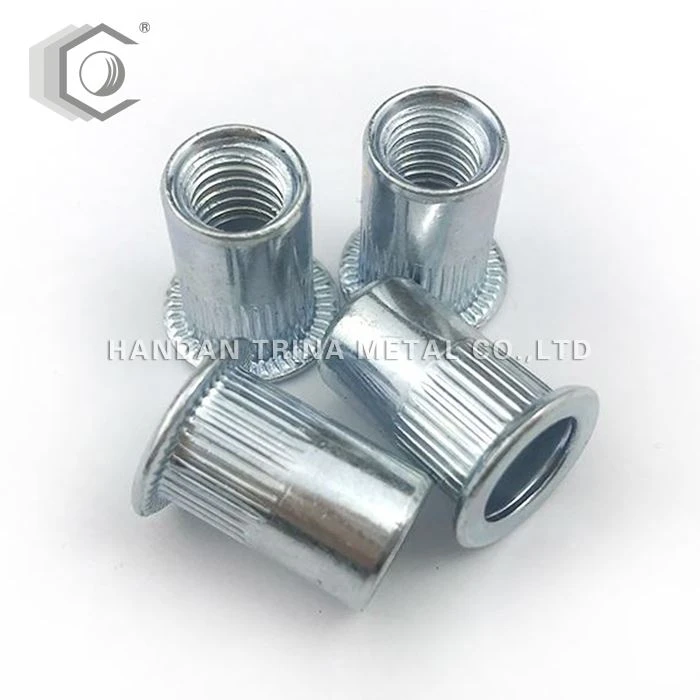

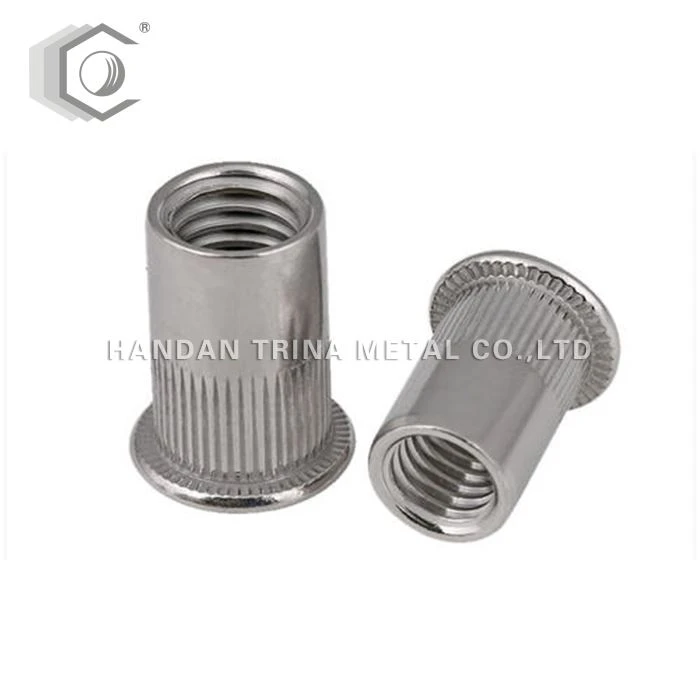

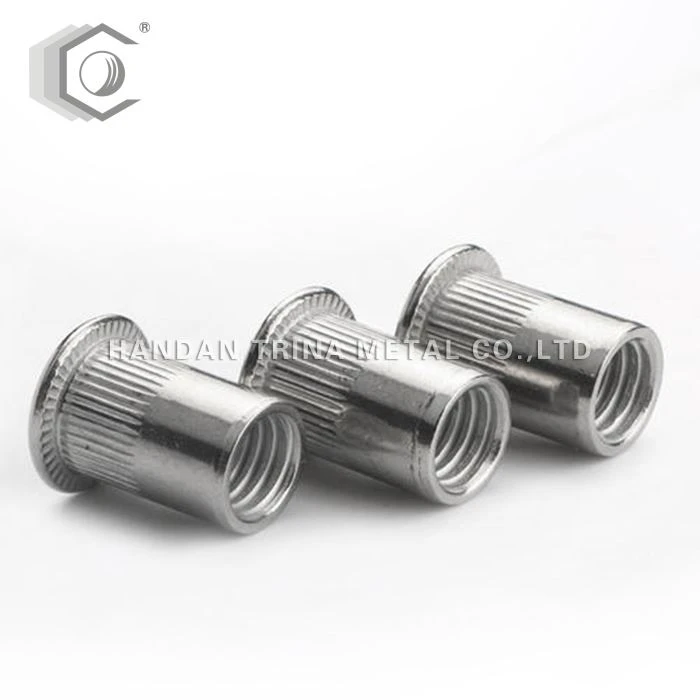

Size:M3-M12
Surface：ZP
Material:stainless steel
D | M3 | M4 | M5 | M6 | M8 | M10 | M10 | M12 | M12 |
P | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1 | 1.75 | 1.5 |
d | 5 | 6 | 7 | 9 | 11 | 13 | 13 | 15 | 15 |
4.97 | 5.97 | 6.97 | 8.97 | 10.97 | 12.97 | 12.97 | 14.97 | 14.97 | |
4.9 | 5.9 | 6.9 | 8.9 | 10.9 | 12.9 | 12.9 | 14.9 | 14.9 | |
d1 | 4.12 | 4.92 | 5.72 | 7.65 | 9.35 | 11.18 | 11.18 | 13.18 | 13.18 |
4 | 4.8 | 5.6 | 7.5 | 9.2 | 11 | 11 | 13 | 13 | |
dk | 8 | 9 | 10 | 12 | 14 | 16 | 16 | 18 | 18 |
k | 0.8 | 0.8 | 1 | 1.5 | 1.5 | 1.8 | 1.8 | 1.8 | 1.8 |
r | 0.2 | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
d0 | 5.15 | 6.15 | 7.15 | 9.15 | 11.15 | 13.15 | 13.15 | 15.15 | 15.15 |
5 | 6 | 7 | 9 | 11 | 13 | 13 | 15 | 15 | |
h1 | 5.8 | 7.5 | 9.3 | 11 | 12.3 | 15 | 15 | 17.5 | 17.5 |
Product Advantages:
1. Mature process.
2. The product has a shiny appearance.
3. Professional quality inspection.
4. Professional pre-sale and after-sales service.
Application scope:
Rivet nuts are mainly used in non-structural bearing bolt connections, such as the connection of interior parts such as rail passenger cars, highway buses, and boats. The improved rivet nuts that can prevent spin are more excellent than the pallet nuts for aircraft. Its advantages are Lighter weight, no need to fix the pallet nuts with rivets in advance, and the back of the substrate can still be used without operating space.
1. The rivet nut can effectively solve the problem of "yellow water" after the air conditioner shell has formed for a long time for a long time, and can effectively eliminate the problems of false welding.
2. Solve the problem that the flanged self-tapping screw is not firmly connected, improve the reliability, and reduce the noise caused by the loosening of the connection, which is more reliable, practical, and convenient for maintenance.
3. Improve production efficiency, reduce the number of workers, and reduce labor costs.
4. Reduce the use of factory land.
5. Riveting nut instead of flanging and tapping can reduce the material by 20% and save energy
6. Solve the problem that the flanging and tapping connection is not firm, improve the reliability of the connection, effectively reduce the noise caused by the loose connection, make the grounding more reliable, practical, and convenient for maintenance.
