Products Description：
| Product Name | DIN 444 EYE BOLT |
| Material | Stainless steel, alloy steel |
| Standard | DIN EN ISO 898-1 b |
| Grade | 8.8,A2-70,A4-70 |
| Diameter | M5,M6,M8,M10,M12,M16,M20,M24 |
Dimension table：
| Size | M5 | M6 | M8 | M10 | M12 | M16 | M20 | M24 |
| p | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 | 3 |
| d2 | 5.07 | 6.07 | 8.08 | 10.08 | 12.095 | 16.096 | 18.096 | 22.11 |
| d2 | 5.145 | 6.145 | 8.17 | 10.17 | 12.205 | 16.205 | 18.205 | 22.24 |
| s | 6 | 7 | 9 | 12 | 14 | 17 | 22 | 25 |
| s | 5.52 | 6.42 | 8.42 | 11.3 | 13.3 | 16.3 | 21.16 | 24.16 |
| r | 4 | 6 | 6 | 6 | 9 | 9 | 9 | 15 |
| r | 2 | 3 | 3 | 3 | 4.5 | 4.5 | 4.5 | 7.5 |
Product Details：

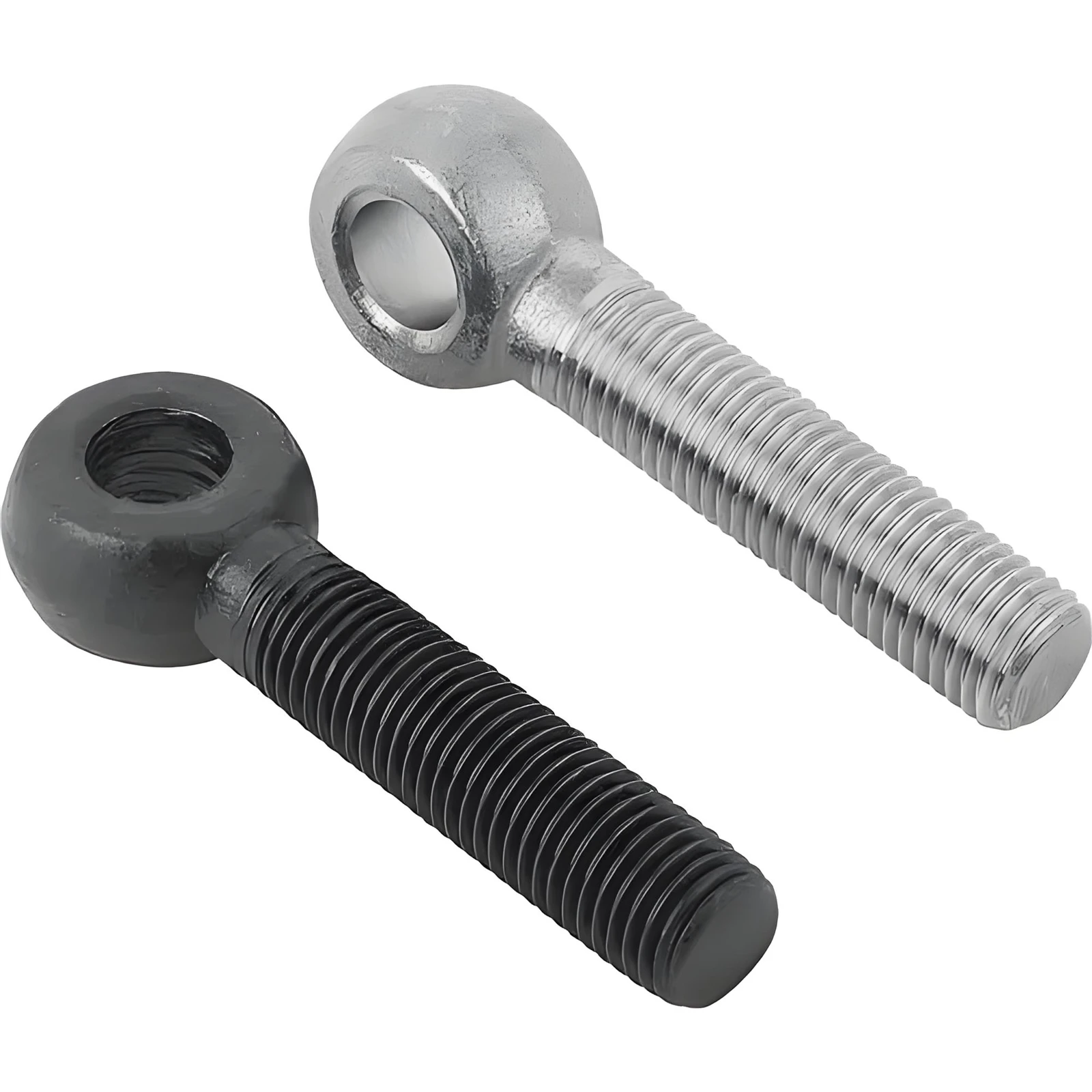

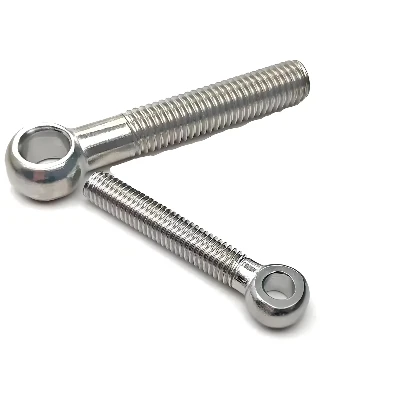

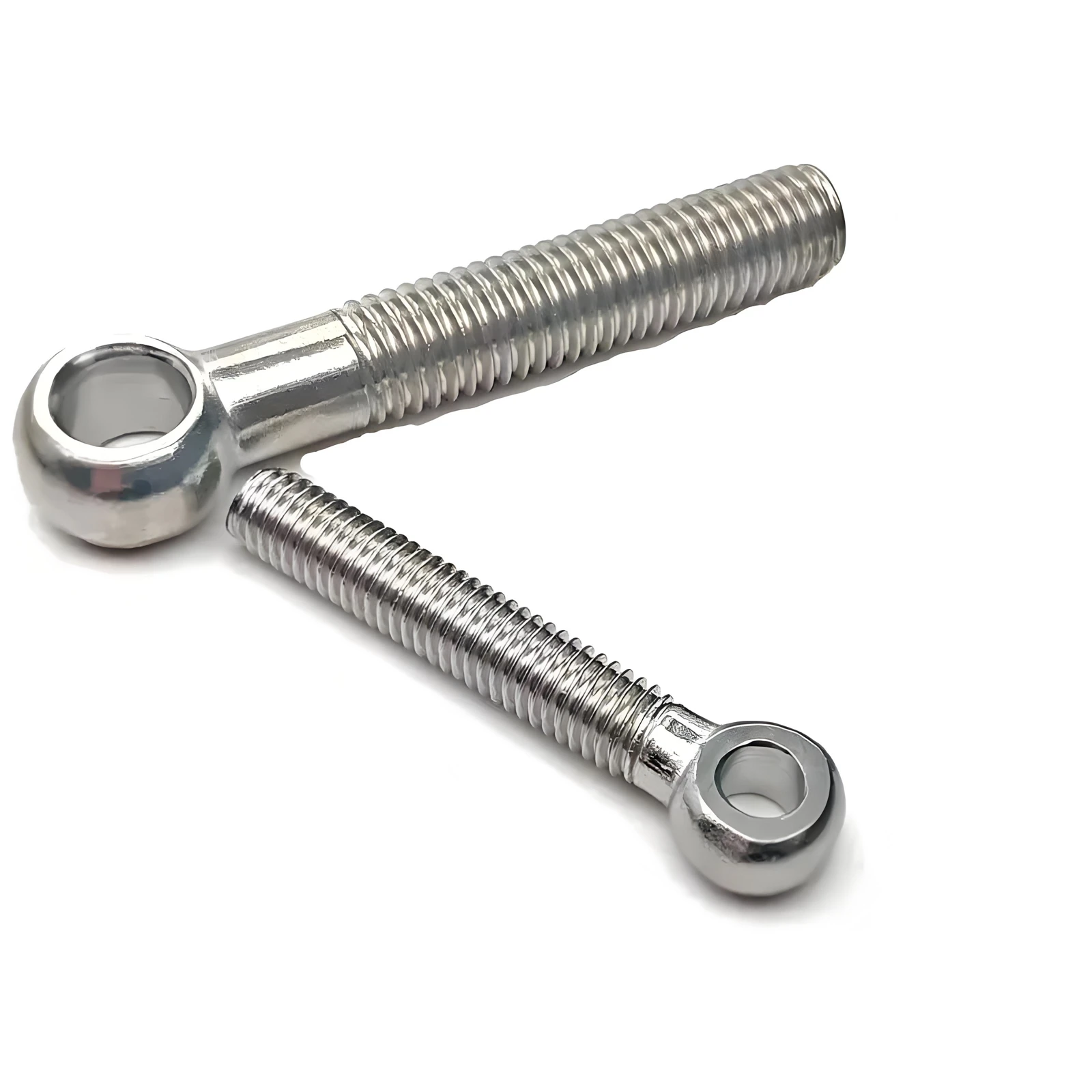

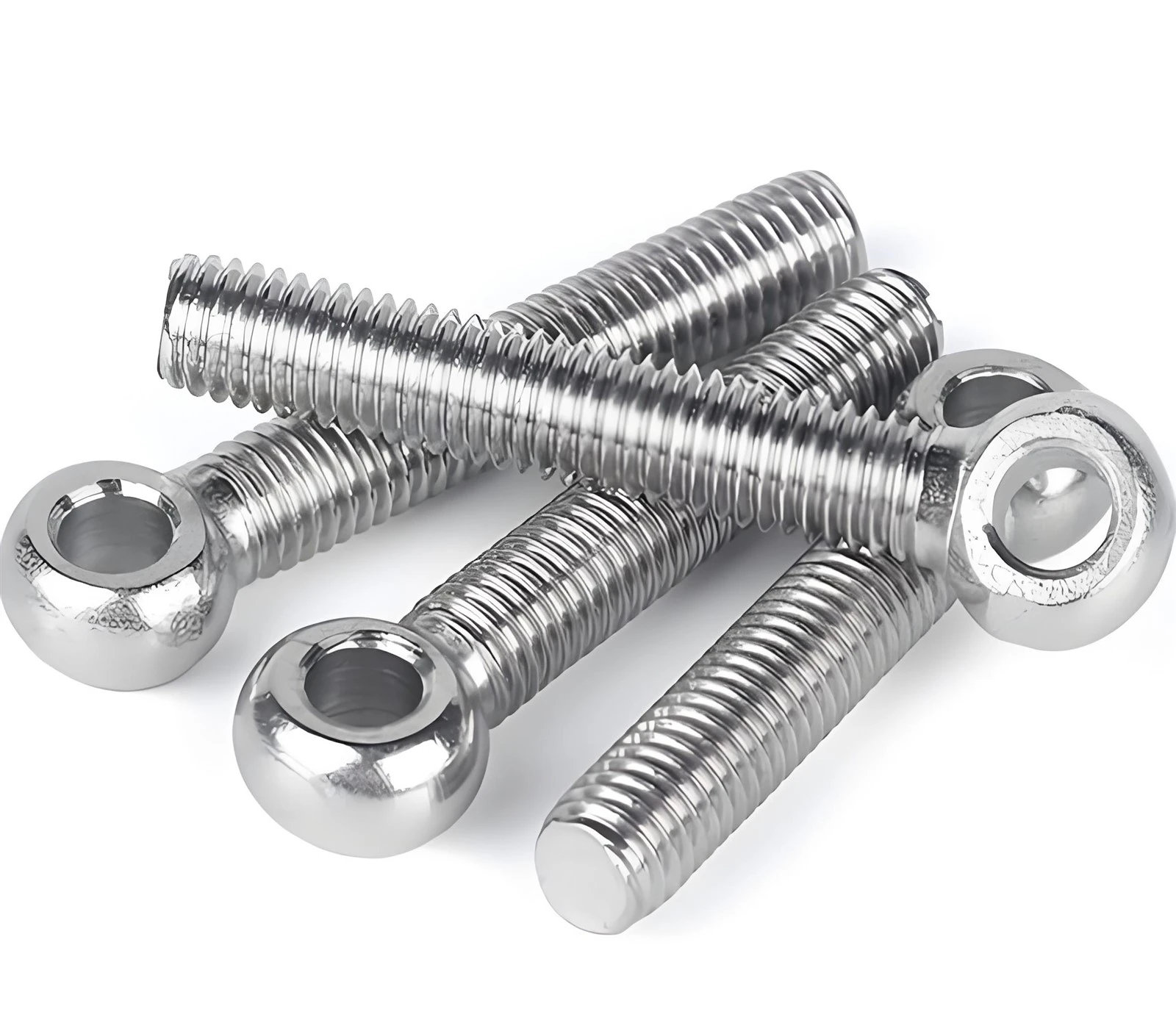

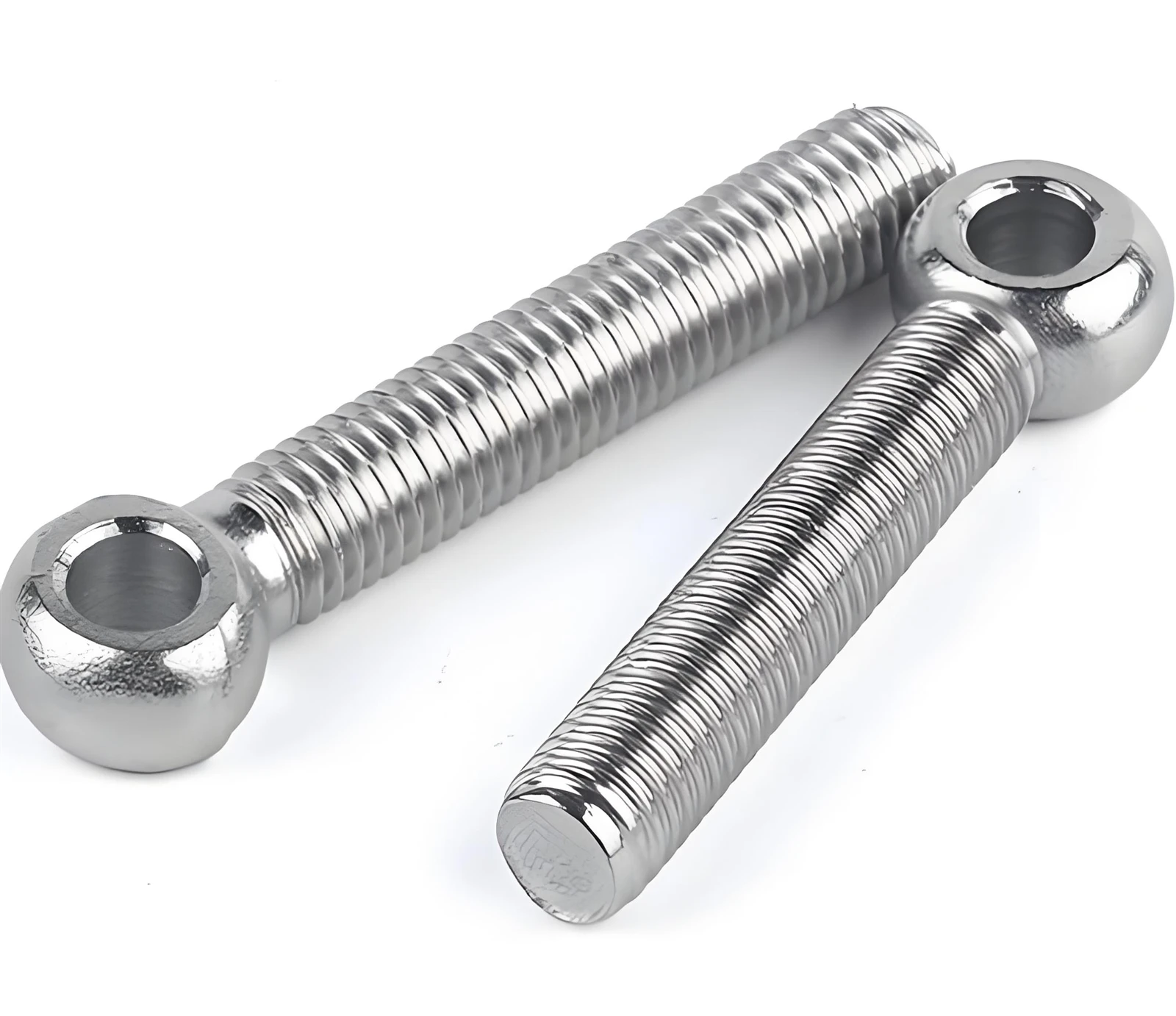

The 444 eye bolt (DIN444 live joint bolt) is a fastener that complies with the German standard DIN444. It is called a hole eye bolt in China and a fish-eye bolt abroad.
Structural features：Youdaoplaceholder0 Head type : Live joint head design, high spherical surface finish, and relatively high thread accuracy.
Youdaoplaceholder0 Material : Common materials include carbon steel, stainless steel (such as 304, 316), etc.
Youdaoplaceholder0 Surface treatment : anti-corrosion measures such as hot-dip galvanizing, diffusion galvanizing, whitening, and color galvanizing.
Application scenarios：
Youdaoplaceholder0 Industrial field : Widely applied in scenarios such as low-temperature and high-pressure valves, oil drilling and production equipment, fluid engineering, and pressure pipelines.
特殊场景：如阀门行业,折叠式自行车,童车等需要频繁拆装的场合.
Specification range：
Youdaoplaceholder0 thread specification : M6 to M64, in compliance with GB/T798-88 or DIN444 standards.
Youdaoplaceholder0 Non-standard customization : Supports special requirements such as extended union sleeves and enlarged holes.
